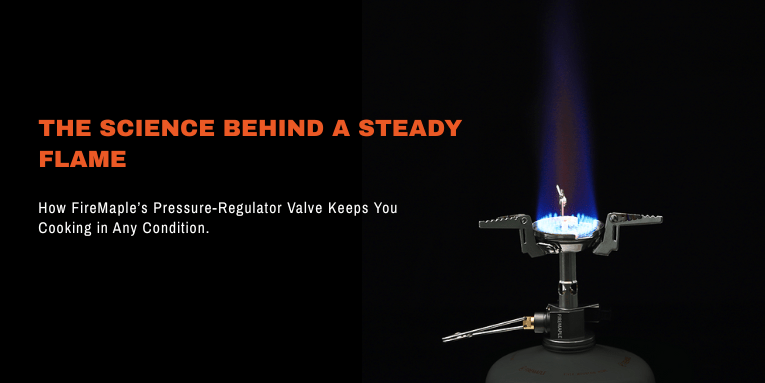

FireMaple Outdoor Manual: What Is a Pressure-Regulator Valve?

1️⃣ Why Some Stoves Lose Power Outdoors If you’ve ever cooked in cold or high-altitude conditions, you’ve probably noticed this: your stove starts strong, but after a few minutes the flame weakens — or even goes out. That’s not a fuel problem — it’s a pressure problem.As temperature and altitude change, the vapor pressure inside a gas canister drops. When the pressure is too low, the gas can’t push through the stove system, leading to unstable or weak flames. To solve this, FireMaple developed pressure-regulator technology — a system that automatically balances gas pressure for steady, reliable heat in changing environments. 2️⃣ What Is a Pressure-Regulator Valve? Think of it as a smart valve between your canister and burner.Its job is to maintain a consistent gas pressure, even when the fuel level or outside temperature changes. Inside the regulator are two key components: A spring, which sets the target operating pressure (around 0.6–0.7 MPa). A diaphragm, which flexes slightly in response to pressure changes. Together, they form a self-adjusting system that keeps the flame power stable without constant user control. 3️⃣ How It Works The regulator continuously reacts to changes in pressure inside the canister: When pressure drops (cold weather or low fuel):The diaphragm moves inward, allowing more gas to flow and keeping the flame strong. When pressure rises (hot weather or a fresh canister):The diaphragm compresses the spring, reducing flow to prevent flare-ups and wasted fuel. In simple terms: the regulator is like a shock absorber — it smooths out pressure changes to keep your stove’s output steady. Inside the Regulator: How Gas Pressure Is Controlled The diagram above shows how a pressure-regulator valve balances incoming gas pressure using a spring and diaphragm system.High-pressure gas from the canister enters the A chamber, flows through a restricted channel into the control chamber, and the diaphragm adjusts automatically to maintain steady output. 4️⃣ Regular vs. Pressure-Regulated Stoves Condition Regular Stove Pressure-Regulated Stove Cold or Low Fuel Flame weakens or goes out Flame remains steady Hot Weather Flame flares or wastes fuel Flame stays even High Altitude Unstable output Consistent performance Efficiency Burns more gas Uses fuel efficiently A regular stove reacts to the environment.A pressure-regulated stove adapts to it. 5️⃣ When Pressure Gets Too Low or Too High Even the best regulators have limits — here’s what happens at the extremes: Too Low Pressure:When it’s very cold or the canister is almost empty, vapor pressure may drop below 0.2 MPa.At that point, even the regulator can’t maintain gas flow, and the flame weakens or stops.👉 In extreme cold, only stoves with both a regulator and a preheat tube can safely operate with an inverted canister — keeping liquid fuel vaporized before combustion. Too High Pressure:In very hot conditions, gas expands and pressure rises beyond the valve’s limit.The internal spring fully compresses, the valve locks shut automatically, and the stove won’t light until pressure drops.👉 This built-in lockout prevents overpressure or fuel leakage — an important FireMaple safety feature. Summary:Too cold → not enough push.Too hot → too much push.Within range → perfect steady flame. 6️⃣ What About Fuel Types? Not all gas blends behave the same. Butane performs poorly below 0°C. Isobutane improves low-temperature performance. Propane mixes (20–30%) maintain higher vapor pressure in freezing conditions. Your stove’s regulator helps — but fuel composition still matters.For winter or alpine use, always choose a mixed canister with a higher propane ratio. 7️⃣ When a Regulator Reaches Its Limit Even a well-designed pressure-regulated stove can’t override physics.If canister pressure drops below the designed minimum or the fuel inside becomes fully liquid, vaporization stops — and no gas can flow. At that point, only systems with both a preheat tube and inverted canister capability can continue working reliably. The regulator stabilizes output — but the preheat tube makes cold-weather operation possible. 8️⃣ Safety and Reliability When internal pressure rises beyond design limits, FireMaple regulators use a mechanical lockout mechanism —the spring compresses fully, sealing the valve shut to prevent uncontrolled gas release. This safety-first design ensures that even in extreme heat or overpressure conditions, your stove won’t flare or leak. 9️⃣ Takeaways — Why It Matters A pressure regulator keeps your stove’s output consistent within its designed range. It works via a spring-and-diaphragm system that balances gas flow automatically. Preheat tubes are required for inverted canister use in extreme cold. Fuel mix affects overall performance.
